100% Length Hydrostatic Tested Control Line Tubing for Down Hole Application in Oil and Gas Industry

Product Description:

Features:

Control lines that can be delivered in orbital-weld-free lengths up to 40,000 ft (12,192 m) are provided to ensure optimal reliability. A wide range of options are available, such as single, dual, or triple flat-packs that can be combined with downhole electrical cables and/or bumper wires for easier operation and handling during deployment.

Moreover, a welded-and-plug-drawn production method is implemented to guarantee a smooth, round tube, allowing long-term metal sealing of terminations upon the completion of deployment. Different encapsulation materials are carefully selected to suit different well conditions, thus providing assurance on longevity and reliability overall.

Technical Parameters:

This table lists the characteristics of seamless and floating internal plug redrawn tubing, which is supplied in the annealed condition and provided in continuous length without orbital joint welds. Specifications include alloy, UNS, outer diameter, wall thickness, working pressure, burst pressure, collapse pressure and test pressure. The theoretical burst pressure is based on minimum wall thickness and minimum tensile strength, while the theoretical collapse pressure is based on minimum wall thickness and minimum yield strength. The pressure rating is at 100°F (38°C) in neutral and static conditions.

Alloy UNS O.D., W.T., working pressure, burst pressure, collapse pressure and test pressure are specified for each type of tubing. The corresponding details of all Stainless 316L stated in the table are as follows:

• 1/8 inch 0.125 inch 0.028 inch: working pressure 9,931 psi, burst pressure 40,922 psi, collapse pressure 9,525 psi, test pressure 11,600 psi
• 1/8 inch 0.125 inch 0.035 inch: working pressure 12,640 psi, burst pressure 52,042 psi, collapse pressure11,056 psi, test pressure 15,225 psi
• 1/4 inch 0.250 inch 0.035 inch: working pressure 5,939 psi, burst pressure 24,474 psi, collapse pressure 6,621 psi, test pressure 7,250 psi
• 1/4 inch 0.250 inch 0.049 inch: working pressure 8,572 psi, burst pressure 35,322 psi, collapse pressure 8,632 psi, test pressure 10,150 psi
• 1/4 inch 0.250 inch 0.065 inch: working pressure 11,694 psi, burst pressure 48,166 psi, collapse pressure 10,562 psi, test pressure 13,775 psi
• 3/8 inch 0.375 inch 0.035 inch: working pressure 3,818 psi, burst pressure 15,731 psi, collapse pressure 4,659 psi, test pressure 4,350 psi
• 3/8 inch 0.375 inch 0.049 inch: working pressure 5,483 psi, burst pressure 22,575 psi, collapse pressure 6,222 psi, test pressure 6,525 psi
• 3/8 inch 0.375 inch 0.065 inch: working pressure 7,517 psi, burst pressure 30,951 psi, collapse pressure 7,865 psi, test pressure 8,700 psi
• 3/8 inch 0.375 inch 0.083 inch: working pressure 9,808 psi, burst pressure 40,372 psi, collapse pressure 9,551 psi, test pressure 11,600 psi
• 1/2 inch 0.500 inch 0.049 inch: working pressure 4,003 psi, burst pressure 16,480 psi, collapse pressure 4,835 psi, test pressure 5,075 psi
• 1/2 inch 0.500 inch 0.065 inch: working pressure 5,461 psi, burst pressure 22,512 psi, collapse pressure 6,206 psi, test pressure 6,525 psi
• 1/2 inch 0.500 inch 0.083 inch: working pressure 7,133 psi, burst pressure 29,364 psi, collapse pressure 7,648 psi, test pressure 8,700 psi
• 5/8 inch 0.625 inch 0.049 inch: working pressure 3,144 psi, burst pressure 12,955 psi, collapse pressure 3,957 psi, test pressure 3,625 psi
• 5/8 inch 0.625 inch 0.065 inch: working pressure 4,285 psi, burst pressure 17,630 psi, collapse pressure 5,105 psi, test pressure 5,075 psi
• 5/8 inch 0.625 inch 0.083 inch: working pressure 5,472 psi, burst pressure 22,513 psi, collapse pressure 6,519 psi, test pressure 6,525 psi
• 3/4 inch 0.750 inch 0.049 inch: working pressure 2,619 psi, burst pressure 10,791 psi, collapse pressure 3,296 psi, test pressure 2,900 psi
• 3/4 inch 0.750 inch 0.065 inch: working pressure 3,570 psi,burst pressure 14,686 psi, collapse pressure 4,283 psi, test pressure 4,350 psi
• 3/4 inch 0.750 inch 0.083 inch: working pressure 4,558 psi, burst pressure 18,753 psi, collapse pressure 5,431 psi, test pressure 5,800 psi

Applications:

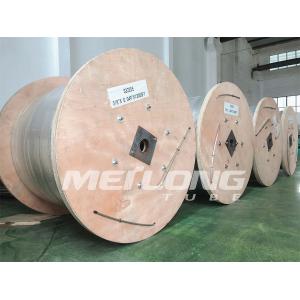

Control Line Tubing is an essential component of the down hole application in the oil and gas industry. Meilong Tube's Control Line Tubing is made with 1/4''OD x 0.065''WT and is certified with ISO9001. The minimum order quantity is 1 coil, packaged in a wooden case. Delivery is within 7 days and payment terms include T/T and L/C. The supply ability is 150 metric tons per month, and each tube is annealed for a secure connection with ferrule fittings. The surface of the Control Line Tubing is highly clean and bright and each tube is 100% length hydrostatic tested.
