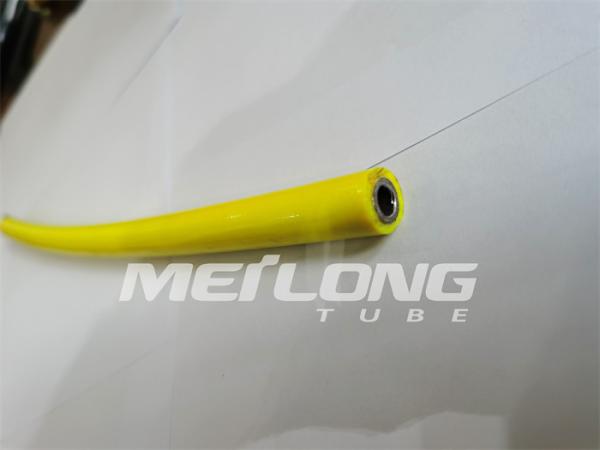

PVDF Encapsulated Injection Line Super Duplex 2507 Capillary Tubing

Meilong Tube manufactures either welded or seamless chemical injection lines for subsurface applications. Injection line is available in mainly five materials, varying wall thicknesses, and a wide range of working pressure ratings. The line is supplied on spools to exact length requirements. Upon request, it is pressure tested hydraulically, purged with nitrogen gas, or clean oil liquid, and sealed on both ends prior to shipping.

Welded chemical injection line is floating plug drawn to ASTM specifications and is available in any length. Material types for injection lines include stainless steel TP316L which is suitable for sweet to moderately corrosive environments, Duplex stainless steel 2205, Super Duplex stainless steel 2507, nickel alloy Incoloy 825 and Inconel 625 are suitable for severely corrosive environments and high working pressures and temperatures. Control system fluids must be compatible with the environments and operating temperatures of the control line.

Injection line encapsulation also is available, where requested, to provide additional crush and abrasion resistance during installation. The encapsulation material should be matched for compatibility with well fluids and temperature requirements.

Encapsulated Injection Line

MEILONG offers the encapsulation of control & injection lines to provide increased durability, as well as chemical and corrosion resistance to meet each project’s specialized requirements, we offer different encapsulation types, such as: HDPE (High Density Polyethylene), Santoprene, PVC (Polyvinyl Chloride), Haylar and PVDF (Polyvinylidene Fluoride).

Flatpacks are commonly used when several different lines are terminated at approximately the same depth in the well.

Common applications include intelligent well systems, deep-set chemical injection lines with downhole gauge cable and safety valve lines with shallow set chemical injection lines. For some applications bumper bars are also encapsulated into the flatpack to provide additional crush resistance.

Standard & Approvals

Injection Lines are manufactured according to applicable ASTM standards for each specific material.

Tubes can be supplied flushed, filled, and filtered per client requirements and to the appropriate NAS/SAE standards.

Quality & Testing

- Manufactured in accordance with Standard Inspection and Quality Plans

Design & Construction

- Encapsulation for single line

- Encapsulation profiles to suit customer application

- Custom Line Marking

- Full range of application materials

Encapsulation Materials

5 = Excellent 1 = Poor

Features of Encapsulated Injection Line

Maximize protection of downhole line

Increase crush resistance during installation

Protect control line against abrasion and pinching

Eliminate long term stress corrosion failure of control line

Improve clamping profile

Single or multiple encapsulation for ease of running and added protection

Available Alloy Grades for Injection Line Tubing Inside Encapsulation

Standard Encapsulation Profiles

Round, Single Line	Item	Standard Dimensions
	1/8’’ OD Line	0.250’’ (6.35 mm) Dia.
	1/4’’ OD Line	0.433’’ (11.0 mm) Dia.
	3/8’’ OD Line	0.535’’ (13.6 mm) Dia.
	1/2’’ OD Line	0.660’’ (16.8 mm) Dia.

Square, Single Line	Item	Standard Dimensions
	1/8’’ OD Line	0.250’’ x 0.250’’ (6.35 mm x 6.35 mm)
	1/4’’ OD Line	0.433’’ x 0.433’’ (11.0 mm x 11.0 mm)
	3/8’’ OD Line	0.535’’ x 0.535’’ (13.6 mm x 13.6 mm)
	1/2’’ OD Line	0.660’’ x 0.660’’ (16.8 mm x 16.8 mm)

Rectangular, 2 Lines	Item	Standard Dimensions
	1/4’’ OD Line	Width: 0.710’’ (18.0 mm) Height: 0.410’’ (10.4 mm)

Rectangular, 3 Lines	Item	Standard Dimensions
	1/4’’ OD Line	Width: 0.990’’ (25.1 mm) Height: 0.410’’ (10.4 mm)

Meilong Tube manufactures high quality seamless and redrawn, seam-welded and redrawn coiled tubing which are made from corrosion-resistant austenitic, duplex, super duplex stainless steel and nickel alloy grades. 100% of products are used as hydraulic power control lines, chemical injection lines, alloy tubing in umbilicals and instrumentation tubing for the exploitation engineering in the upstream oil and gas industry.

Coiled tubing is available in sizes arrange from outer diameter 0.125 inch (3.175 millimeters) to 1 inch (25.4 millimeters). Wall thickness is up to 0.083 inch (2.108 millimeters). Lengths up to 65600 feet (20,000 meters) are available for cost-effective umbilical manufacturing. More sizes within the scope can be customized to be produced and delivered for meeting your special requirements.
